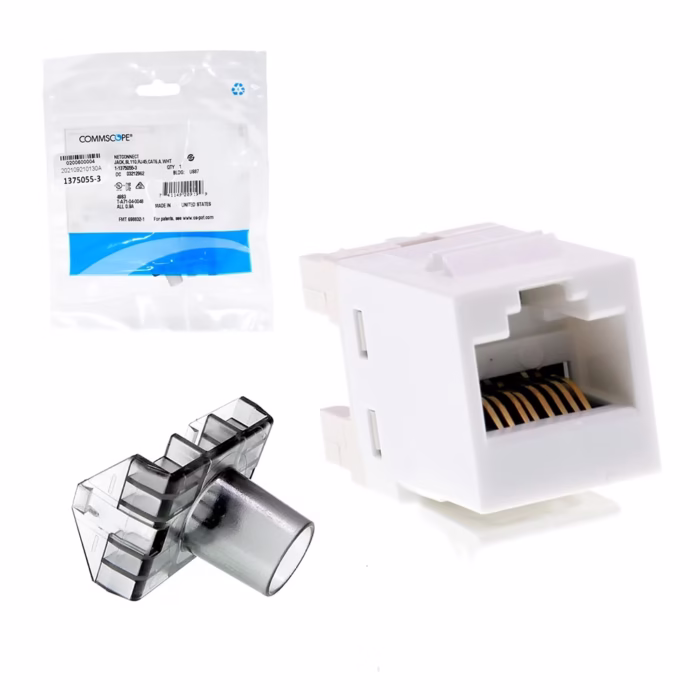

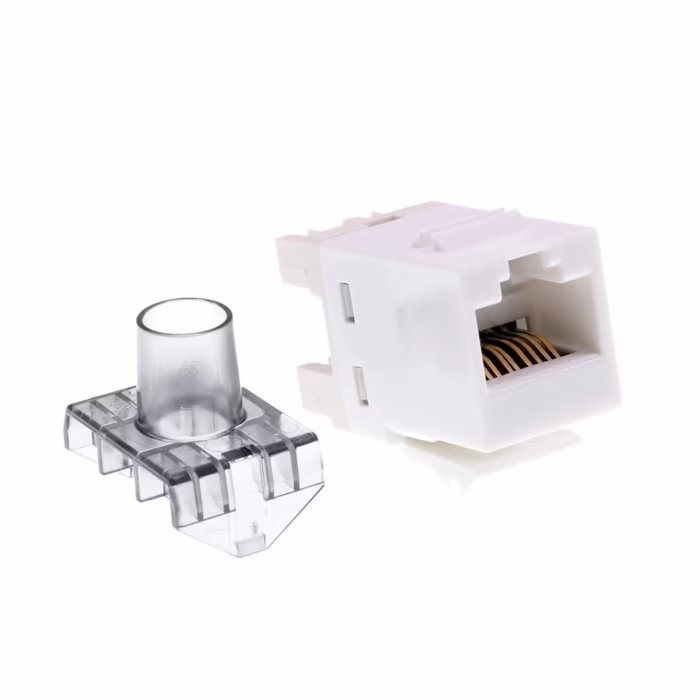

JACK CAT6 MODELO SL COLOR BLANCO 1375055-3
| Product Classification | |
| Portfolio | NETCONNECT® |
| Product Series | SL Series |
| Product Type | Modular jack |
| Dimensions | |
| Compatible Insulated Conductor Diameter, maximum | 1.450 mm | 0.057 in |
| Depth | 30.48 mm | 1.20 in |
| Height | 16.13 mm | 0.64 in |
| Width | 14.48 mm | 0.57 in |
| | |
| Electrical Specifications | |
| ANSI/TIA Category | 6 |
| Safety Voltage Rating | 150 Vac |
| Transmission Standard | ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E |
| | |
| Environmental Specifications | |
| Flammability Rating | UL 94 V-0 |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Safety Standard | CSA | cUL |
| | |
| General Specifications | |
| Cable Type | Unshielded |
| Color | White |

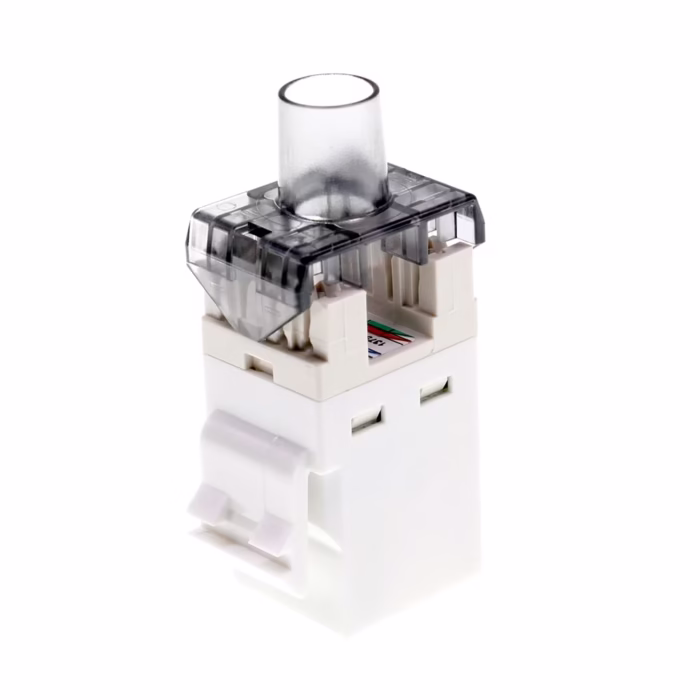

| Includes | Strain relief cap |
| Mount Type | SL Series faceplates and panels |
| Package Quantity | 25 |
| Packaging Type | Bag |
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
| Panel Thickness, recommended | 1.60 mm |
| | |
| Mechanical Specifications | |
| Conductor Gauge, solid | 24–22 AWG |
| Conductor Gauge, stranded | 26–24 AWG |
| Conductor Type | Solid | Stranded |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Contact Plating Thickness | 1.27 µm |
| Material Type | Polycarbonate |
| Outlet Feature | Inverted jack face |
| Outlet Type | Standard |
| Plug Insertion Life, minimum | 750 times |
| Plug Retention Force, minimum | 89 N | 20 lbf |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Wiring | T568A | T568B |
Regulatory Compliance/Certifications
| Agency | Classification |
| RoHS 2011/65/EU | Compliant |
